Water Filter frp Pressure Tank Filament Winding Machine
frp filament winding production line introduction
1.Used to produce and manufacture the FRP horizontal winding molded vessels as well as the related winding molded products, such as FRP storage tank, fermentation tank, integral septic tank,large FRP chimney, FRP transportation tank, FRP tank for water treatment and etc.
2.This production line is characterized by the high precision of winding line, high productivity, low energy-consuming, easy installation, adjustment and maintenance. It adopts the industrial computer control, so the usage and operation are very convenient.
Filament Winding Machine of FRP Tanks specification
Winding Machine of FRP Tanks | |||
Equipment No Item Name | FWWS-2500 | FWWS-4000 | FWWS-10000 |
Tank diameter,IDmm | Φ500-Φ2500 | Φ800-Φ4000 | Φ4000-Φ10000 |
Product length,mm | ≤12000 | ≤12000 | ≤12000 |
Winding angle | 45 º90 º | 45 º90 º | 45 º90 º |
Max weight of product ,kg | 8500 | 12000 | 28000 |
Rotating speed of main shaft ,r/min | ≤45 | ≤35 | ≤18 |
Transmission method | Pinion and rack | Pinion and rack | Pinion and rack |
Control method | manualsemi automaticautomatic | manualsemi automaticautomatic | manualsemi automaticautomatic |
Max speed of pulling yarn ,m/min | 90 | 90 | 90 |
Max width of yarn tape ,mm | 200 | 200 | 200 |
Production capacity ,kg/h | 800 | 1200 | 2000 |
Total installed capacity , kw | 10.5 | 12.5 | 18.5 |
Areas covered by production linelength × width × heightm | 18×9×2.5 | 18×9×3 | 20×15×7 |
Filament winding machine including resin mixing machine, transportaion system and winding machine

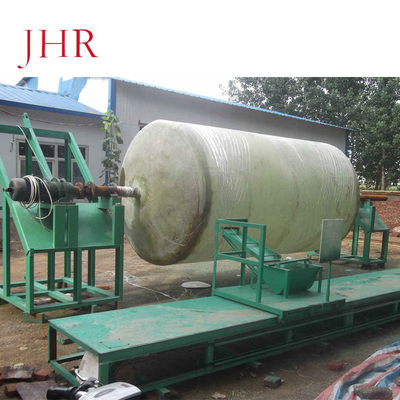

Filament winding machine pictures
The frp tank be produced by frp filament winding machine
Q: Are you a trading company or a manufacture factory?
A: Our factory is one of the biggest FRP products, FRP machines manufacturer in China
