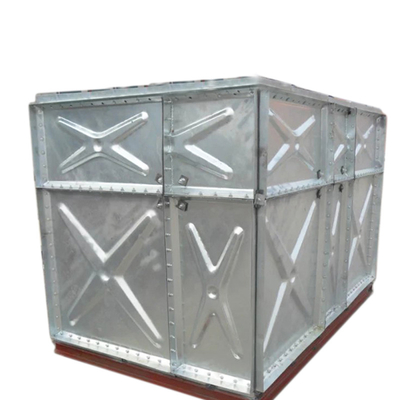

high quality food grade agriculture 5000 litre pressure assembled galvanized steel water tank
The hot dipped galvanized steel water tank defers to the GB code 92SS177 manufactured new type water tank. The manufacture and the installment of tank have no influence of the construction. There are not needed the welding apparatus, the surface is hot dipped galvanize antiseptic treatment. It's artistic durable, prevents two times pollution to water quality and it beneficial to human health. The water tank meets the construction product standardization, the serration and the factorization request.
| Leaking stoppage, tiepiece, support, flange, sealing gasket, rubber strip, screws, tiepiece plant, ladder, washer, fasten clamp, water gauge. | |
| as the storage equipment for reclaimed water, fire water; widely used in mining, residential buildings, hotels, office buildings, schools, restaurants and other public facilities. |
1. Material
The sectional panel tank shall consist of 4' x 4' or 1 meter x 1 meter,1 meter x 0.5 meter
panel manufactured from 1.5mm to 4.0mm thickness according to requirement.
2. Flanges
The sectional panels shall be pressed to double flanges at the angles of 45 degree and 90 degree to the face of the plate on four sides.
3. Reinforcement Method
All tanks are internally braced with angle stays to endure the rigidity of the tank when filled with the water. The Top panel is supported by top panel support, which shall be made of stainless steel grade 304 or 316 material according to requirement.
4. Accessories
1. Bolt. nut & washers stainless steel 304 material.
2. Sealing material Non-toxic P.V.C foam tape shall be used in between the joints.
3. Covers The tank cover shall be constructed from 1.2mm to 3.0mm of thickness stainless steel 304 material according to the requirement.
4 Ladders and Level Indicator
Internal & external ladder shall be made of stainless steel grade 304 material.
Step 1. Install steel footings on leveled concrete foundations.
Step 2. Align glass reinforced plastic panels to be pre assembled.
Step 3. Place rubber sealant from ready-to-use roll between panels.
Step 4. Connect panels with bolts and nuts.
Step 5. Position bottom panel sections, and finish up base of tank.
Step 6. Position three sides of the tank.
Step 7. Position and fix roof panels and if required, roof support pipes and plates.
Step 8. Install reinforcement if required.
Step 9. Close up the tank with the fourth side.
Step 10. Finish the internal or external reinforcement.
Step 11. Fill and test.
Galvanized Steel Water Tank Features:
(1) Strong resistance to corrosion.
Galvanized steel water tank applications:
(1) Living and fire fighting water for ordinary houses, commercial and residential buildings, office buildings, residential communities, institutions, hotels, and schools.
(2) Production and domestic water use of industrial and mining enterprises.
(3) Various types of circulating water, cooling water, hot water supply system water.
(1) The customer can choose the size, and also can design by their selves ; (L* W*H)
(2) Please finished the base foundation before installation;
(3) When ordering, the customer should tell the size of the inlet & outlet, the sewage outlet and the overflow outlet, as well as which method (screw or flange);
(4) Please inform in advance if you have special requirement.
