Home /Products/Heating Storage Tank/2000L Hotels Small Cryogenic Tanks For Industrial Storage And Medical Oxygen Supply And Heating

2000L Hotels Small Cryogenic Tanks For Industrial Storage And Medical Oxygen Supply And Heating

1 Set
MOQ
$19,800.00(1 - 4 Sets) $19,500.00(5 - 9 Sets) $19,000.00(>=10 Sets)
Price
2000L Hotels Small Cryogenic Tanks For Industrial Storage And Medical Oxygen Supply And Heating
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year
Core Components: PLC, Engine
Dimension(L*W*H): 1843*1960*2340
Capacity: Customized
Weight: 1264
Volume (m³): 2m³
Inner Material: S30408
Outer Material: Q345R
Design Pressure(MPa): 0.84
Max Working Pressure(MPa): 0.8
Design Standard: ASME/PED/GB
Working Temperature(℃): -192 - 20 ℃
Warranty: 1 Year
Key Selling Points: High Safety Level
Applicable Industries: Hotels, Food & Beverage Factory, Construction Works , Energy & Mining, Food & Beverage Shops
Showroom Location: None
Basic Infomation
Payment & Shipping Terms
Packaging Details: 2000L medical oxygen tank for hospital liquid oxygen storage Micro Bulk Cryogenic Liquid Tanks 1.2000L&3000L container 2.No packing or Seaworthy packing 3.Customer's Request
Supply Ability: 100 Set/Sets per Month liquid oxygen tank, liquid oxygen tank
Product Description
Product Overview

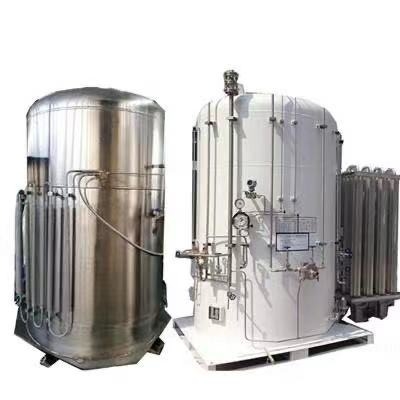

Micro Bulk Cryogenic Liquid Tanks

1.Micro tank is a pressure vessel which is used for filling and storing cryogenic liquid such as LO2,LAr,LN2,LCO2 and LNG 2.The Maximum working pressure available are 0.8Mpa,1.6Mpa,3.0Mpa and 3.5Mpa,the nominal volumes available are 1m3、2m3、3m3、5m3、7.5m3.
3.The micro tank is suitable for transporting vaporized gases when it's connected with a vaporizer.Micro tanks are pressure vessel with inner and outer container double layers structure.
4.The inner container is made of stainless steel suspended in the outer container with supporting devices.
5.The space between the inner container and the outer container is wrapped with heat insulated material and vaccum withdrawn
6.Relevant safety regulations must be complied with when installing,using or maintaining the micro tank.
FEATURES AT A GLANCE
Working medium: Liquid Oxygen
Working Pressure:0.8/1.6/3.2Mpa
Insulation method:High vacuum multilayer winding insulation
Meterial:S30408(Inner Cylinder)
Q345R(Outer Cylinder)
Standard:GB standard(or according to customers requirements,like CE ASME and so on.)
PRODUCT SPECIFICATIONS
Model
Volume ㎡
Working/Design Pressure (Mpa)
Device Size
mm
Net Weight
(kg)
CFL-2/0.8
2
19600.8/0.84
1843*1960*2340
1264
CFL-2/1.6
2
1.6/1.68
1843*1960*2340
1264
CFL-3/0.8
0.83
0.8/0.84
1843*1960*3090
1743
CFL-3/1.6
3
1.6/1.68
1843*1960*3090
1743
CFL-5/0.8
5
0.8/0.84
2243*2360*3130
2602
CFL-5/1.6
5
1.6/1.68
2243*2360*3130
2602
Characteristics of the Equipment
At home and abroad, Cryogenic small cryogenic liquid storage tanks, as an alternative to cylinders and Dewar's simple and convenient new gas supply mode has been widely promoted and used, and through advanced storage and transportation can provide high-quality gas products, its technology has become increasingly mature. The technology has matured. The Cryogenic Liquid Storage Tank can supply high purity liquid gas directly to a small cryogenic storage tank installed on site via a small tanker, which can enjoy continuous and uninterrupted gas supply without the hassle of handling cylinders. It is particularly effective in improving productivity and reducing waste.
Successful Project
Cryogenic storage tanks
Cryogenic air supply tanks
Company Profile
Doer is a leading industrial gas and engineering company. The company serves a variety of end markets including chemicals & energy, food & beverage, electronics, healthcare, manufacturing, metals and mining. Nanyang Doer Gas Equipment Co., Ltd. is mainly engaged in the research, design,manufacture and after-sales service of various industrial gas equipment and cryogenic equipment.
The company has: 1. Cryogenic equipment division: large atmospheric cryogenic storage tank, powder vacuum cryogenic storage tank, large air-bath vaporizer, water-bath vaporizer, cryogenic loading pump and loading arm system for large cryogenic storage tank, metering skid Wait.

2. Gas equipment business unit: LNG refueling station, L-CNG refueling station, LNG vaporization station, LNG vaporizer, LNG vaporization pressure regulating metering and odorizing skid, LPG vaporizer.

3. Heat Exchanger Business Unit: high-pressure wound tube heat exchanger, fixed tube plate heat exchanger, U-tube heat exchanger, floating head heat exchanger. The concept of "building a reliable brand in the industry based on advanced Doer technology" has been adhered to by the company. Adhering to this concept, the company actively explores and develops new processes and technologies, and constantly introduces advanced technologies and scientific research achievements at home and abroad. In the past few years, the industrial gas equipment produced by the company has been widely used in coke oven gas LNG, iron and steel metallurgical industry, air separation industry, urban gas industry, due to its advanced technology, excellent quality, reasonable price and super-value after-sales service. Heat treatment industry, coal-fired oil-fired boiler transformation industry, as well as powder metallurgy, hot-dip galvanizing industry, petrochemical industry, chemical fiber, float glass, food preservation, medicine, electronics, automobile LNG refueling station, marine LNG transformation, gas terminal reserve adjustment Peak stations, laboratories of scientific research unit
FAQ
1. who are we? We are based in Henan, China, start from 2013,sell to Domestic Market(25.00%),Southeast Asia(20.00%),Africa(10.00%),Mid East(10.00%),South Asia(10.00%),North America(5.00%),South America(5.00%),Eastern Europe(5.00%),Eastern Asia(5.00%),Western Europe(5.00%). There are total about 201-300 people in our office. 2. how can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.what can you buy from us? Cryogenic Liquid Storage Tanks,Air separation plant,LNG/L-CNG Filling Station,PSA/VPSA Oxygen Nitrogen Generator Plants,Micro Bulk Cryogenic Liquid Tanks 4. why should you buy from us not from other suppliers? Doer is a leading industrial gas and engineering company.The company serves a variety of end markets including chemicals & energy, food & beverage, electronics, healthcare, manufacturing, metals and mining.Cryogenic tanks of Doer help your business succeed 5. what services can we provide? Accepted Delivery Terms: FOB,CFR,CIF,EXW； Accepted Payment Currency:USD,CNY; Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union; Language Spoken:English,Chinese,German,Russian
