Features

Specifications

Condition: New

Applicable Industries: Pharmaceutical

Showroom Location: None

Video Outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: Ordinary Product

Warranty Of Core Components: 1 Year

Core Components: Gear

Material: Customize

Weight: Customize

Size: Customize

Power: Customize

Warranty: 1 Year

Productivity: 300-1000L

Weight (KG): 1000 Kg

Basic Infomation

Payment & Shipping Terms

Packaging Details: 1. With export standard bubble film packaging, then for wooden case packaging for alone beer tanks and less brewery equipment.-LCL shipping. 2. If more tanks or complete set of brewery, with bubble film packaging, the for containers for FCL shipping. 3. By

Supply Ability: 20 Set/Sets per Month

Product Description

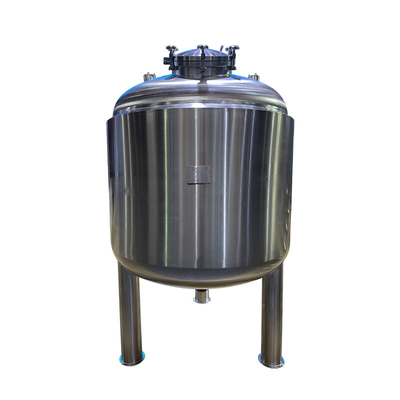

It has the function of heating and heated preservation. The interlayer twined helical band can be heated by steam or cooled by cooling water The material of the heat preservation is composite silicate thread felt Matching with temperature transmitter, sanitary level sensor, cleanser and vent filter. Using Ss361L or SS304 for the inside shell of the tank. the interior surface under mirror polishing which Ra. 0.4.

The exterior surface of the tank used sub-optical polishing It can be customized according to the requirement of customer.

Vertical

Model	Specification (L)	Reference Size(mm)
Model	Specification (L)			D	D1	H	H1	H2	H3	H4
CHL300	300	800	900	1484	460	461	820	400
CHL500	500	900	1000	1587	530	530	928	400
CHL1000	1000	1100	1200	1878	750	750	1356	400
CHL2000	2000	1300	1400	2463	1220	1220	1926	400
CHL3000	3000	1600	1700	2395	1220	1100	2070	400
CHL4000	4000	1800	1900	2557	1220	1220	2220	400
CHL5000	5000	1900	2000	2637	1220	1220	2220	400
CHL6000	6000	2000	2100	2806	1380	1380	2206	400
CHL8000	8000	2200	2300	3226	1500	1500	2680	400
CHL10000	1000	2400	2500	3450	1580	1780	2780	400

Horizontal

Model	Specification (L)	Reference Size(mm)
Model	Specification (L)			D	L	L1	L2	B
CD1000	1000	1000	1606	730	1050	150
CD2000	2000	1200	2156	1050	1500	150
CD3000	3000	1300	2656	1300	1950	150
CD4000	4000	1500	2708	1300	1900	200
CD5000	5000	1600	2908	1400	2050	200
CD6000	6000	1700	3108	1450	2200	200
CD8000	8000	1900	3358	1650	2350	250
CD10000	10000	1900	4058	2050	3000	250
CD15000	15000	2100	4912	2500	3800	300
CD20000	20000	2300	5472	2800	4200	300

Noted

The price is for reference only, the plan needs to be formulated according to the customer's URS, and the product needs to be customized separately.
