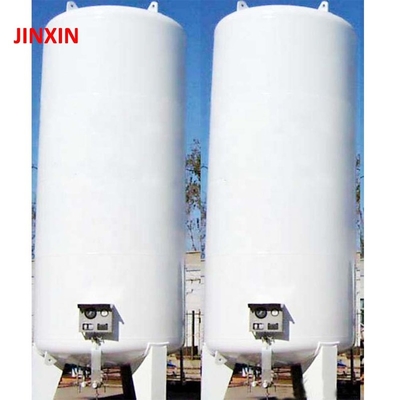

Hot Selling Vertical Type Hospital 5000L Liquid Oxygen Cryogenic Storage Tank With Double Wall Vacuum For Hospital Use 5M3

1.0 Units
MOQ
Hot Selling Vertical Type Hospital 5000L Liquid Oxygen Cryogenic Storage Tank With Double Wall Vacuum For Hospital Use 5M3
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 5 Years
Core Components: Vacuum Parts
Dimension(L*W*H): 2000mm*2000mm*5130mm
Capacity: 5000L
Weight: 3412
Volume (m³): 5M3
Inner Material: S30408
Outer Material: Q345R
Design Pressure(MPa): 1.6MPa
Max Working Pressure(MPa): 1.64MPa
Design Standard: ISO,CE,ASME
Working Temperature(℃): -196 - 40 ℃
Warranty: 1 Year
Key Selling Points: Long Service Life
Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Hospital
Showroom Location: None
Name: Liquid Oxygen Storage Tank
Working Medium: LO2,LN2, LAR,
Material: S304/Q345R
Color: White
Certification: ISO CE ASME
Application: Hospital
Basic Infomation
Certification: ISO CE ASME
Payment & Shipping Terms
Packaging Details: Cryogenic storage tank with waterproof cloth Spare parts with export wooden box
Supply Ability: 200 Set/Sets per Month
Product Description
Product Description

Hot Sale Vertical Type 5000L Cryogenic Liquid Oxygen Storage Tank With Double Wall Vacuum for Hospital Use 5M3

Cryogenic liquid storage tank is a series of products about first/second/third type
pressure vessels manufactured by our company,the products strictly in accordance with the TSG21-2016《Stationary Type Pressure Vessels Safty Techical Supervision Rules》GB/T150-2011《Press Vessels》, GB/T18442-2019pressure vessel>,design,manufacture,inspect and accept.

Cryogenic liquid storage tanks are double wall,vertical and horizontal structure,adopt vacuum powder isulation,with the advantage of compact structure,low daily evaporation rate,small footprint,centralized control,safe,reliable,easy operation and maintenace.

Main Structure

JX Liquid Oxygen Nitrogen and Argon Storage tank is a double cylinder structure, tube and pipe were used austenitic stainless steel manufacturing, outer cylinder with Q235-B/Q345R manufacturing, sandwich filled with perlite, and vacuum pumping, and setting the after special treatment of the adsorbent to extend the life of vacuum tank.

Specification
Product Name:
Hot Sale Vertical Type 5000L Cryogenic Liquid Oxygen Storage Tank With Double Wall Vacuum for Hospital Use 5M3
Medium
LN2,LO2,LAr,LNG
Effective Volume
5m3
Working pressure
1.6MPa
Overall dimension
Φ2000×5130mm
Design temperature
-196℃--40℃
Outer cylinder material
Q345-R
Inner cylinder material
S30408
Insulation
Vacuum powder insulation
Application
Cryogenic liquid Oxygen Nitrogen Argon tanks can be widely used in various industries, such as machine building, gas, chemical engineering, synthetic fiber, medical, food industry, mining, electronic, metallurgyand military engineering, etc.
