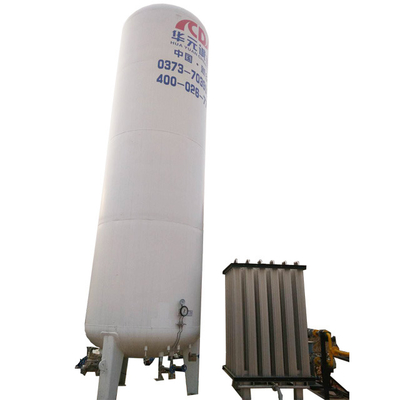

15m3 Cryogenic Liquid Storage Tank Liquid Oxygen Storage Tank Cryogenic Tank Companies For Sale
We have more than 17 years of production experience,also haverich exporte experience.We supply Industrial gas(O2,N2,Ar,CO2,LNG etc) filling stations for foreign market more than10 years.Complete gas solutions,can be provided for customers.Of course,total package for the filling station can be done by us. Including installation,comssioining and start-up etc.
| Name | Parameter |
| Effective Capacity | 15M3 |
| Working Pressure | 1.6MPa |
| Design Temp | -196°C (inner tank) |
| Inner Material | S30408 |
| Outer Material | Q245R |
| Insulation Type | High Vacuum powder insulation |
| Fillling Rate | 95% |
| Loading medium | LO2,LN2,LAr |
| Design Standard |
a.GB150 <Pressure Vessels> b.GB/T 18442< Cryogenic >Insulation Pressure Vessels>
c.TSGR0004 <Pressure Vessels’ Safety Technical Supervision Rules>
|
| We can customize the cryogenic tank of special capacity and pressure with different design standard or certificate(GB ASME CE CU-TR INMETRO etc) | |
Steel plate We used high quality steel plate which used in the tank has a unique number so that we can do the whole tracking.
Rolling stainless steel and carbon steel are used different Rolling Machine, to prevent steel pollution
Welding Our welders must have senior welder certificate, and their certificate examination according to the "boiler and pressure vessel, pressure pipeline welder examination and management side" or "field equipment, industrial pipe welding engineering specification for construction and acceptance of" GB50236
Install The inner tank and the outer tank are respectively welding,then welded together.
Vacuum pumping The inner tanks must be done vacuum testament for a week after Helium leak detector test.
Our company also produce cryogenic LOX/LN2/LAr storage tank,Aerated barge (water stations),vaporizer,Large cryogenic liquid storage tank,LNG Refueling Station,LNG filling station pump skid,Oxygen, argon, nitrogen cryogenic liquid filling bottles of pump,
liquid carbon dioxide pump,centrifugal cryogenic liquid pump,liquidnature gas pump for pump system,High-pressure liquid natural gas pump,cryogenic liquid flow pump,Steam heated water bath vaporizer,Electric heating bath type evaporator,Selfoperated pressure regulating equipment,Natural gas pressure regulator,Gas filling bar,omnibus bar.
1,Our products are packaged in nude or in accordance with the requirements of the customer.
2,Our company have a professional team of installation and debug , we can provide installation, debug and start-up etc service for customers if you need.
3, Whenever our customers have question, after we received your question, we will give you feedback within 24 hours.
Our company was founded in 2002, located in Industrial Park, Fengquan district, Xinxiang city, Henan province. with its south to the yellow river and north to Taihang Mountain, with beautiful scenery and convenient transportation. The company has been committed to the pressure vessels, Low-temperature cryogenic equipment and gas equipment in the field of research and development, design, manufacture and installation.
My company's main products are: cryogenic liquid storage tank, flat large cryogenic liquid storage tank, cryogenic liquid pump, ambient type vaporizer, water bath vaporizer, gas pressure regulating device and non-standard pressure vessel etc.
We have been supplying Industrial gas(O2,N2,Ar,CO2,LNG etc) filling stations to foreign market for over 10 years. Complete gas solutions can be provided to customers.
