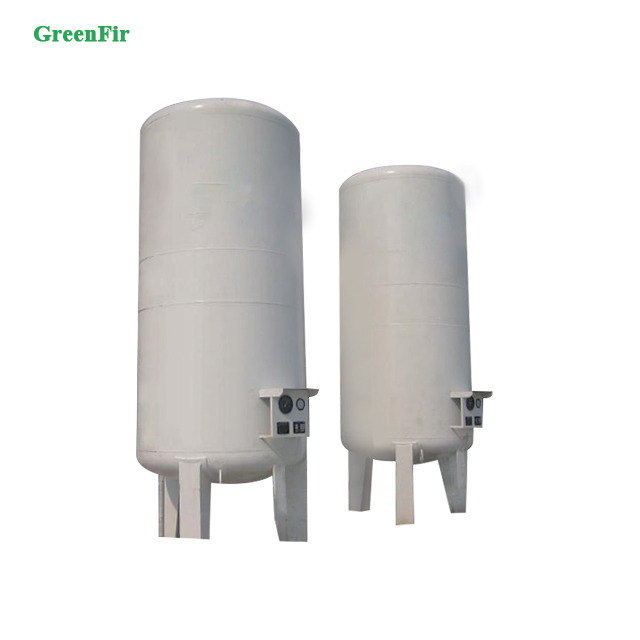

Industrial Used Gas ASME Liquid Nitrogen Tank 10m3 -250m3

1 Set
MOQ
Industrial Used Gas ASME Liquid Nitrogen Tank 10m3 -250m3
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Energy & Mining
Max Working Pressure(MPa): 1.6 MPa
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2019
Warranty Of Core Components: 1 Year
Core Components: Tank Body
Capacity: 10-250m3, 2-250m3
Dimension(L*W*H): Actual Dimension
Weight: Actual Weight
Warranty: 18 Month
Key Selling Points: Accurate Temperature Control
Showroom Location: None
Product Name: Cryogenic Liquid Storage Tanks For LOX, LIN, LAR, LNG,LCO2
Application: Gas, Chemical, Machinery, Metallurgy, Medical And Other Industries.
Working Pressure: 1.6Mpa
Working Medium: LO2/LAr/LN2/LCO2/LNG/Liquified Ethylene And Etc
Color: White Or Customized
Adiabatic Mode: Vacuum Insulation
Structure: Horizontal Or Vertical Type Vessels
OEM: Available
Design Life: 20 Years
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: None
Certification: ASME, GB150, ISO9001
Basic Infomation
Certification: ASME, GB150, ISO9001
Payment & Shipping Terms
Packaging Details: 1.20ft &40ft container 2.Nude packing or Seaworthy packing 3.Customer's Request
Supply Ability: 50 Set/Sets per Month 100m3 cryogenic liquids tanks
Product Description
Related Products
Product Paramenters
Product Details

Product Description:

CRYOGENIC TANKS
Storage tank is for liquefied gas under pressure, at cryogenic temperatures, for products, such as LNG, N2, O2, Ar, CO2.
They consist of two vessels, one inside the other, with robust thermal insulation in the chamber between them. They are built in both a vertical (with legs or skirting ) and horizontal version(with support cradles and anchoring to the ground).
Design
According to ASME, GB150, GB18442 standards.
Inner pressure vessel
A vessel usually made of austenitic stainless steel or other materials that have favorable strength characteristics when exposed to cryogenic temperatures.
Insulation
Heat insulation is provided by a filling in the chamber between the two vessels using insulating material and a high vacuum. It includes absorbent material for greater vacuum stability. The effective thermal insulation minimizes product losses and enables lengthy storage times of low temperature liquefied gases.
Outer vessel
A vessel made of carbon steel or stainless steel. Under normal operating conditions, this vessel retains the insulation around the inner pressure vessel, and can also maintain a vacuum around the inner vessel. Typically, the outer vessel is not exposed to cryogenic temperature.

Application Fields:

These tanks can be widely used in various industries, such as machine building, gas, chemical engineering, synthetic fiber, medical, food industry, mining, electronic, metallurgyand military engineering, etc.

Product Features:

1. Inner vessel: The austenitic stainless steel material which is suitable for cryogenic working condition is adopted. The structure design is optimized and reasonable.
2. Inner pipeline: The flexible design and inspection is to ensure the quality and appearance of the products. Unique energy-saving pipeline design can ensure the safe use of the product in any medium.
3. Outer vessel: Using Q345R materials, it is equipped with special stainless steel transport support, and lateral lifting lugs to transport easily and reduce the installation cost greatly.
4. Vacuum insulation: We use unique leak detection process, high quality pearl sand, high vacuum multilayer insulation, special sand irrigation process, so that our products have excellent vacuum insulation performance.
5. Valve piping system:
①The structure is compact. The pipe length is less than that of the conventional tank, and the heat loss of the external pipe is effectively reduced.
②The combination valve reduces the number of welded joints to improve safety and reliability, and reduce maintenance costs.
③ With all stainless steel piping design, it provides reliable performance for long service.
6. Safety: The storage tank is equipped with a double safety discharge system with two safety valves and two bursting discs, which enables one of them to be isolated while the other is maintained or under repair.
7. Cleaning standards: All parts in contact with the medium shall be cleaned in strict accordance with the requirements for storing liquid oxygen.
8. Outer surface: It is shot blasted and protected with two layers of coating: high anti-corrosion primer followed by a reflective white polyurethane epoxy topcoat.
Quality Promise
1.Product technology level:
They are designed, manufactured, inspected, and accepted in accordance with advanced European and American national standards and specifications, and meet the requirements of Chinese national standards and specifications. Products with high requirements for the reliability and safety of gasifiers.
2.Overall product quality assurance:
Ensure that the product design, manufacturing, inspection, and acceptance processes (design → procurement → component manufacturing and welding → assembly → inspection and testing → non-destructive testing → final assembly and packaging before delivery) are effectively implemented in strict accordance with the requirements of the ISO9001: 2008 quality management system Control and form records, the buyer can select control points to the site for inspection and confirmation as required, and the factory will provide the necessary working conditions.
Quality guarantee period is 12 months for normal equipment operation
Security Settings
1.The storage tank is equipped with a combined safety device (safety valve) to prevent the equipment from operating under pressure.
2.Each storage tank is also equipped with an auxiliary rupture disk device to further prevent the equipment from overpressure. This rupture disk will completely burst when the safety valve fails and the pressure exceeds the pressure of the
rupture disk to release the internal tank pressure.
FAQ
Q1. Are you manufacturer or trading company?
We are professional manufacturer in cryogenic equipment filed.
Q2. What's your advantage?
We provide you not only techology-leading,stable and reliable,cost-efficient equipment,but also solutions and after-sales service.
Q3. Have your engineers participated in any foreign,projects?
Yes,our engineers have more than 15 years experence in this field and have participated in the design,manufacture,installation and commissioning of the equipment in turkey,Eygpt,Tran Myanmer,ect.
Q4. How can i get the exact price of the product ?
Please tell us your specific requirements and environmental data,so we can provide the most suitable products and solutions for you.
