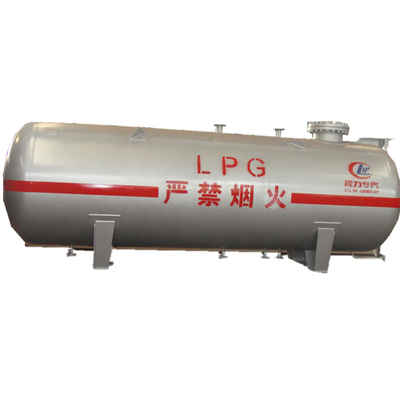

chengli factory sale new good quality horizontal 5 tons propane gas lpg storage tank price
Brief introduction of lpg storage tank
The lpg gas bullet tank is also called lpg tank, LPG gas tank, lpg tank for sale, lpg storage tank, propane gas storage tank,bulk lpg storage tanks, propane tank, lpg pressure vessel, etc. The lpg storage tank is belong to pressure vessel.
The lpg storage tank for sale are horizontal lpg tank, vertical lpg tank. It mainly used to store up liquid petrolum gas, propane. We also produce pressure vessel to store liquid ammonia, dimethyl ether.
The lpg gas storage tank is made of special material Q345R. As a professional lpg tank manufacturer in China, we have the aptitude to design and manufacture A2 type of pressure vessel, C2 type of lpg tank truck, C3 type of LPG tank container. The lpg propane tank we produce is from 5 cubic meter to 120 cubic meter.
The manufacturing processing of propane gas tank is complex and strict. All the lpg gas tanks must do nondestructive examination, air tight test, hydrostatic test and any other inspections.
Technical Parameters of chengli factory sale 12000 liters lpg storage tank
|
No. |
Item Name |
Unit |
Specification |
|
1 |
Product Name |
|
LPG Storage Tank |
|
2 |
Filling Medium |
|
LPG(Propane) |
|
3 |
Tank Volume |
L |
12000 |
|
4 |
Mass of Tank |
KG |
3360 |
|
5 |
Filling Mass |
Kg |
4788 |
|
6 |
Overall Dimension |
mm |
5034x1820x2410 |
|
7 |
Cylinder Thickness |
mm |
10 |
|
8 |
Head Thickness |
mm |
12 |
|
9 |
Tank Material |
|
Q345R |
|
10 |
Corrosion allowance |
mm |
1 |
|
11 |
Heat Treatment |
|
Stress Relief |
|
12 |
Filling Coefficient |
|
0.95 |
|
13 |
Density of Medium |
Kg/m3 |
420(50°) |
|
14 |
Design Pressure |
M pa |
1.77 |
|
15 |
Hydrostatic Test Pressure |
M pa |
2.22 |
|
16 |
Limited Service Time |
Year |
15 |
|
17 |
Necessary Compartments |
|
Safety valve, cut off valve,content gauge, pressure gauge, thermometer |
|
18 |
Manufacturing Standard |
|
GB150-2011 |
Safety Accessories of 12000 l lpg storage tank
|
Made by Chengli Special Automobile |
Safety Accessories List |
Product Name |
12 Cubic Meter LPG Tank (DN1800) |
||
|
Product Model |
CLG16-12-1800 |
||||
|
No. |
Item Name |
Specification |
Q'TY |
Remarks |
|
|
1 |
J41N-2.5-50 |
Cut-off valve DN50 |
6 |
Flange joint face is RF |
|
|
2 |
J41N-2.5-25 |
Cut-off valve DN25 |
2 |
Flange joint face is RF |
|
|
3 |
J24W-320-DN6 |
J24W Needle valve M20x1.5 |
1 |
|
|
|
4 |
HG21584-95 |
Magnetic turning plate content gauge UZFAL-2.5RF-2040-0.50 |
1 |
Flange joint face is RF |
|
|
5 |
A42F-25-80 |
Relief valve DN50 |
1 |
Flange joint face is RF |
|
|
6 |
Y-100T |
Pressure gauge M20x1.5 1.5class 0-4M pa |
1 |
|
|
|
7 |
WTQ-280 |
Thermometer M33x2 2.5class |
1 |
-40°C~60°C |
|
Advantages of liquid petroleum gas storage tank for sale
a.) Fixed-point procurement of raw material manufacturer
b.) Strictly inspection for incoming material
c.) Vigorous production process
d.) Nondestructive examination / 100% X-ray testing
e.) Water pressure and air tightness testing
f.) Excellent safety device, long service time
Tank shaped use the advanced welding technology, end socket arc butt welding, and the once-forming of composite steel-plastic technology. Equipped with active and passive safety devices to meet an emergency and can load and unload the material in long distance and completely close condition. Be applied to transport varied oil, fuel and chemical material, such as natural gas, liquefied petroleum gas, liquefied ammonia, carbon bisulfide, epoxy ethane,gas, butane, dimethylmethane, propylene, etc. Cross section of tank could be oval, round and round-square. heat insulation and heating device is optional.
We, Chengli Special Automobile Co., Ltd., were established in 2004. We are a professional manufacturer and exporter that is concerned with the design, development and production of special trucks, including LPG trucks, cement mixer trucks, water trucks, refrigerator trucks, cargo trucks,garbage truck, oil tanker truck,wrecker towing truck, truck mounted crane and others.
We are located in Suizhou City, Hubei Province, in the middle of China, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of markets around the world.
Covering a large area, we now have over 1000 employees and an annual sales figure that exceeds USD 5 Million. We are currently exporting 30%-40% of our products worldwide. Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. Besides, we have received ISO9001:2008 certification and Chinese TOP 500 Certificate.
chengli Factory exported trucks Show
Packing & Shipping
Our lpg tanks are all nude with wax. They are usually transported to sea port by flatbed trailer, then ship to foreign port by container ship, bulk carrier ship.
Our Service
1. lpg horizontal tank, lpg underground tank, lpg transport truck, mobile dispenser lpg gas tank truck, mobile lpg filling station trailer, lpg filling skid.
2. safety valve such as thermometer, pressure gauge, pressure relief valve, content gauge,etc.
3. We provide installation drawing and technical support for you.
4. All products are enjoy one year guarantee.
Customer visiting picture
If you are intersted in any of new lpg tank, lpg gas bullet tank truck , lpg filling truck and lpg tanker trailer, if you want 5 tons lpg storage tank price, please feel free to contact me. Also, welcome China and visit our factory. The propane tank capacity is from 5000 liters to 200m3.
